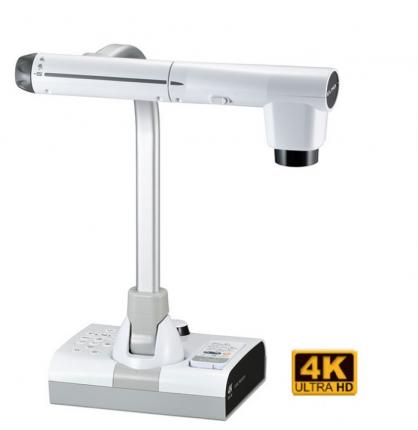

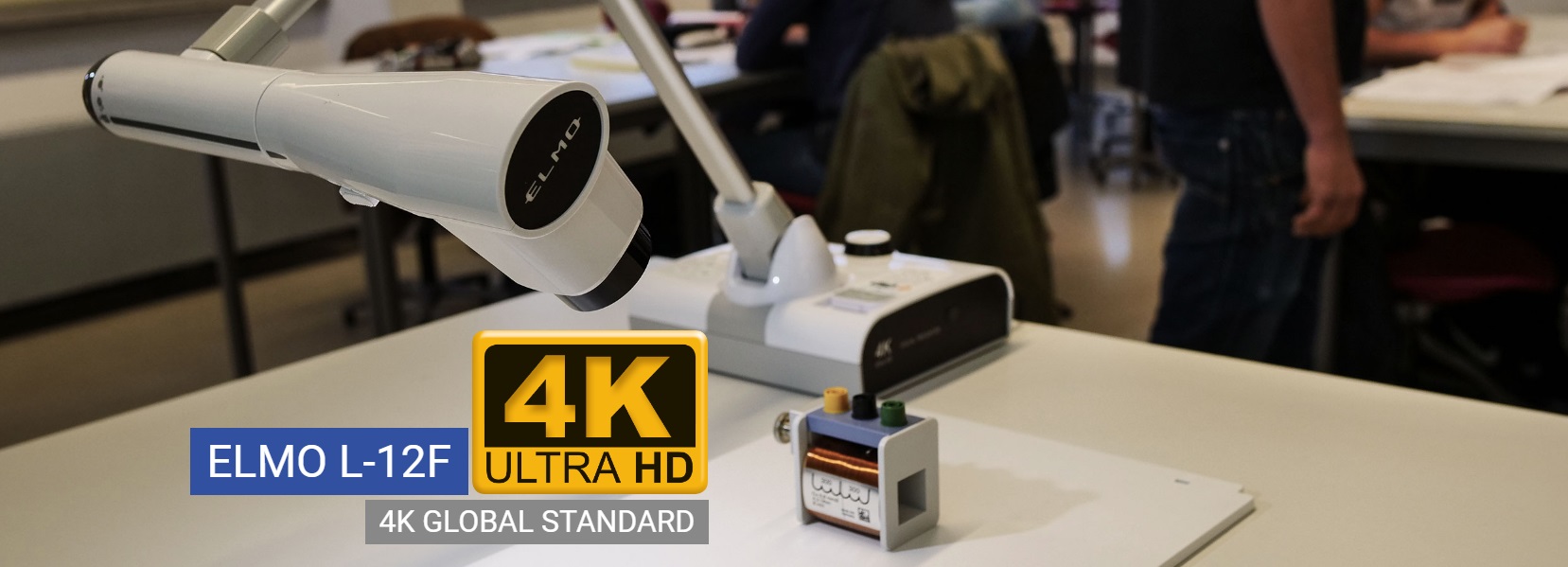

ELMO L-12F - Vizualizatorul 4K Global Standard
Faceți cunoștință cu cel mai puternic prezentator vizual din seria L-12. L-12F oferă imagini uimitoare la o rezoluție adevărată 4K Ultra HD la până la 30 fps, atât la ieșirile HDMI cât și la USB 3.0. Obiectivul cu zoom total de 288x, excepțional de puternic nu va lăsa niciodată neobservat orice mic detaliu. Ca hub HDMI și RGB, acesta permite conectarea ușoară pentru aproape orice dispozitiv auxiliar.
Caracteristici
Specificații
Camera | |
---|---|
IMAGE PICK-UP DEVICE | 1/2.3" 12 Megapixel CMOS |
EFFECTIVE PIXELS | 3,840 (H) x 2,160 (V) / 60fps 3,520 (H) x 2,640 (V) / 30fps |
FRAME RATE | 60 fps |
RESOLUTION | 4K Ultra HD |
Optics | |
---|---|
ZOOM | 24x (Optical zoom 12x + Sensor zoom 2x) |
LENS | f=4.0 mm ~ 48.0 mm, F3.2 ~ F3.6 |
SHOOTING AREA | Max. 469mm x 259mm @ 16:9 Aspect Ratio Max. 430mm × 319mm @ 4:3 Aspect Ratio |
FOCUS | Auto / Zoom Sync |
Functions | |
---|---|
WHITE BALANCE | Auto / One-Push / Fluorescent / Indoor / Outdoor |
IMAGE MODE | Normal / Emphasis / Color emphasis / Black/White / DLP projector |
PAUSE | Provided |
STILL IMAGE STORAGE | Provided |
MOVIE STORAGE | Provided |
DIGITAL ZOOM | 12x |
IMAGE SAVE | SD memory card / USB flash drive |
ANNOTATION | Provided (CRA-2 use) |
BRIGHTNESS CONTROL | Manual |
Interface | |
---|---|
INPUT SELECTION | Main / External |
OUTPUT TERMINALS | RGB D-sub 15-pin connector, female x 1 HDMI connector x 1 USB 3.0 conenctor x1 Line Out 3.5 mm stereo mini jack x 1 |
INPUT TERMINALS | RGB D-sub 15-pin connector, female x 1 HDMI connector x 1 Mic/Line In 3.5 mm stereo mini jack x 1 |
EXT. CONTROL TERMINAL | USB device (3.0 compliant) (UVC Compliant) Type B x 1 |
RESOLUTION | HDMI : 3840 × 2160 / 1920 × 1080 / 1280 × 720 RGB : 1920 × 1080 / 1280 × 720 / 1024 × 768 USB : 3840x2160 / 1920 × 1080 / 1280 × 720 / 3200 × 2400 / 1600 × 1200 / 1024 × 768 / 640 × 480 |
MEMORY INTERFACE | SD memory card slot x 1, USB host (2.0 compliant) Type A receptacle x 1 |
Lighting | |
---|---|
ILLUMINATION LAMP | White LED |
Others | |
---|---|
ACCESSORIES | AC adapter, power cord, USB cable, Remote control, Coin battery, HDMI cable fixture x 2, Cable tie x 2, Quick Start Guide, Warranty sheet |
SECURITY SLOT | Provided |
POWER SOURCE | 12V DC (AC adapter AC 100 - 240V) |
POWER CONSUMPTION | 21 W (AC adapter included) |
DIMENSIONS (WXDXH) | 13.74" x 14.84" 17" (349 x 377 x 432 mm) setup 7.68" x 11.57" x 18.7" (195 x 294 x 475 mm) folded |
WEIGHT | Approx. 6.6 lbs (3 kg) (main unit only) |
